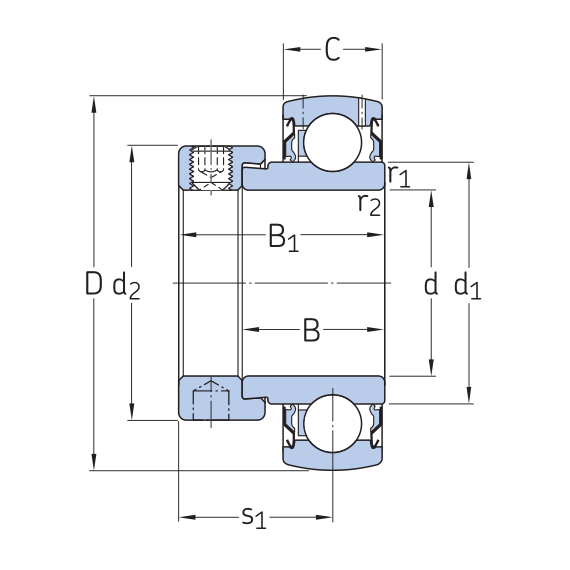

Outer spherical bearing with eccentric locking sleeve

Suitable for applications with constant rotation direction

There is an eccentric step on the extended side of the inner ring for installing the eccentric locking sleeve, namely:

Galvanized layer with metric inner diameter bearings

Black oxide layer with inch bore bearings

Rotate the locking sleeve in the direction of rotation to lock it onto the shaft, and then use a set screw to further tighten the collar onto the shaft

Can provide extension on one side of the inner ring (bearing series YET 2)

Can provide extension on both sides of the inner ring (bearing series YEL 2)

Sealed on both sides (sealing solution) equipped with:

YET 2 series adopts reinforced standard seals on both sides (standard seals)

YEL 2 series bearings adopt reinforced standard seals and additional stamped steel oil deflectors (standard seals with additional oil deflectors, model suffix 2F) or stamped steel oil deflectors with rubber sealing lips (multiple seals, model suffix 2RF/VL065)

The outer ring comes standard with two lubrication holes, one on one side and spaced 120 ° apart

Non lubrication holes (model suffix W) can be provided as required.

SKF has designed the YEL 2. -2DW/AG bearing series to address the harsh operating conditions encountered in agricultural applications, such as combine harvesters and packers, harvesters and disc harrows. This type of bearing:

Equipped with patented five lip seal (five lip seal)

The outer ring does not have any lubrication holes
