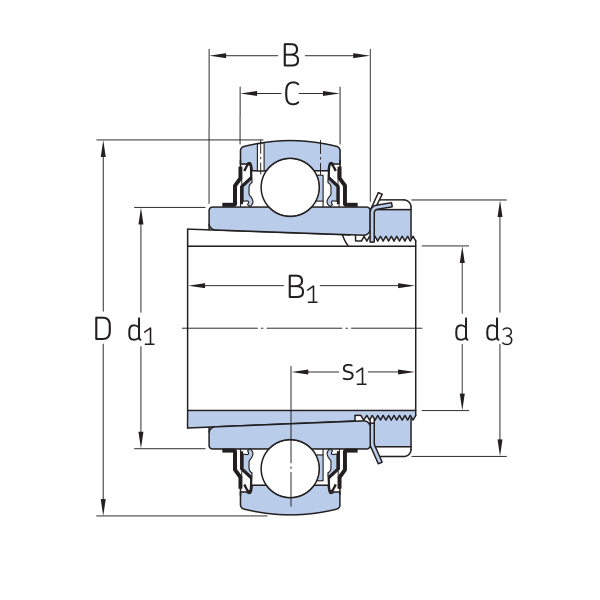

Outer spherical bearing with conical hole

Suitable for applications where the rotation direction is fixed or alternating.

Install the following fastening sleeves:

The H 23 series is suitable for metric axes

HA 23 and HE 23 are suitable for imperial shafts

When installed on the tight fitting sleeve, even using shafts with low precision can achieve full maximum speed

We can provide bearings with symmetrical elongation on both sides of the inner ring and tapered holes (taper 1:12) (bearing series YSA 2)

Both sides adopt reinforced standard seals and additional stamped steel oil deflectors (standard seals with additional oil deflectors)

The outer ring comes standard with two lubrication holes, one on one side and spaced 120 ° apart

Non lubrication holes (model suffix W) can be provided as required.

The corresponding tightening sleeve must be ordered separately from the bearing.
