Outer spherical bearing with standard inner ring

Outer spherical bearings with standard inner rings are suitable for applications where smooth operation is considered a key operational indicator

Its inner diameter is of ordinary tolerance, and it is installed on the shaft with appropriate interference fit

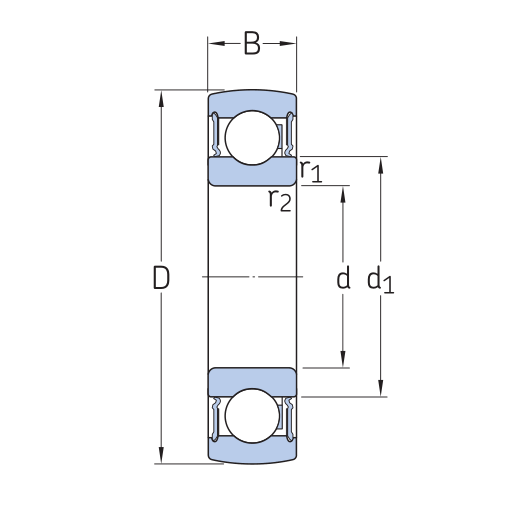

Except for the spherical (convex) outer surface, the dimensions and features are the same as those of the 62 and 63 series deep groove ball bearings (17262 and 17263 bearing series)

Compared to other spherical bearings, it can withstand greater axial loads

The operating speed can reach the corresponding speed of the sealed deep groove ball bearing

Sealed on both sides (sealing solution) equipped with:

Standard nitrile rubber contact seal (RS1 seal, model suffix 2RS1)

Enhanced standard seal (standard seal, model suffix 2RS1/VP274)

The outer ring comes standard without any lubrication holes

Can provide two lubrication holes on the outer ring, one on one side, spaced 120 ° apart (model suffix B)
