Single row deep groove ball bearing with ball loading notch

A single row deep groove ball bearing with a ball loading notch has a ball loading notch on both the inner and outer rings, which is used to load more steel balls than standard deep groove ball bearings.

The radial bearing capacity of bearings with ball mounting notches is greater than that of bearings without ball mounting notches, but their axial bearing capacity is limited. It cannot achieve the same high speed as bearings without ball mounting notches.

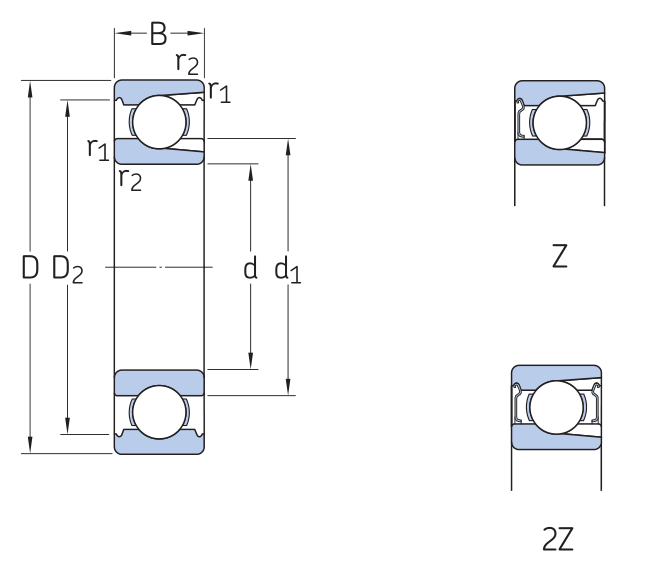

There are two designs for deep groove ball bearings with ball loading notches: open or with dust covers on one or both sides. In addition, the bearing can also have or not have a stop groove. The outer ring of the open bearing has a groove and can also be fitted with a dust cover.

If needed, large-sized deep groove ball bearings with ball loading notches and without cages can be provided.
